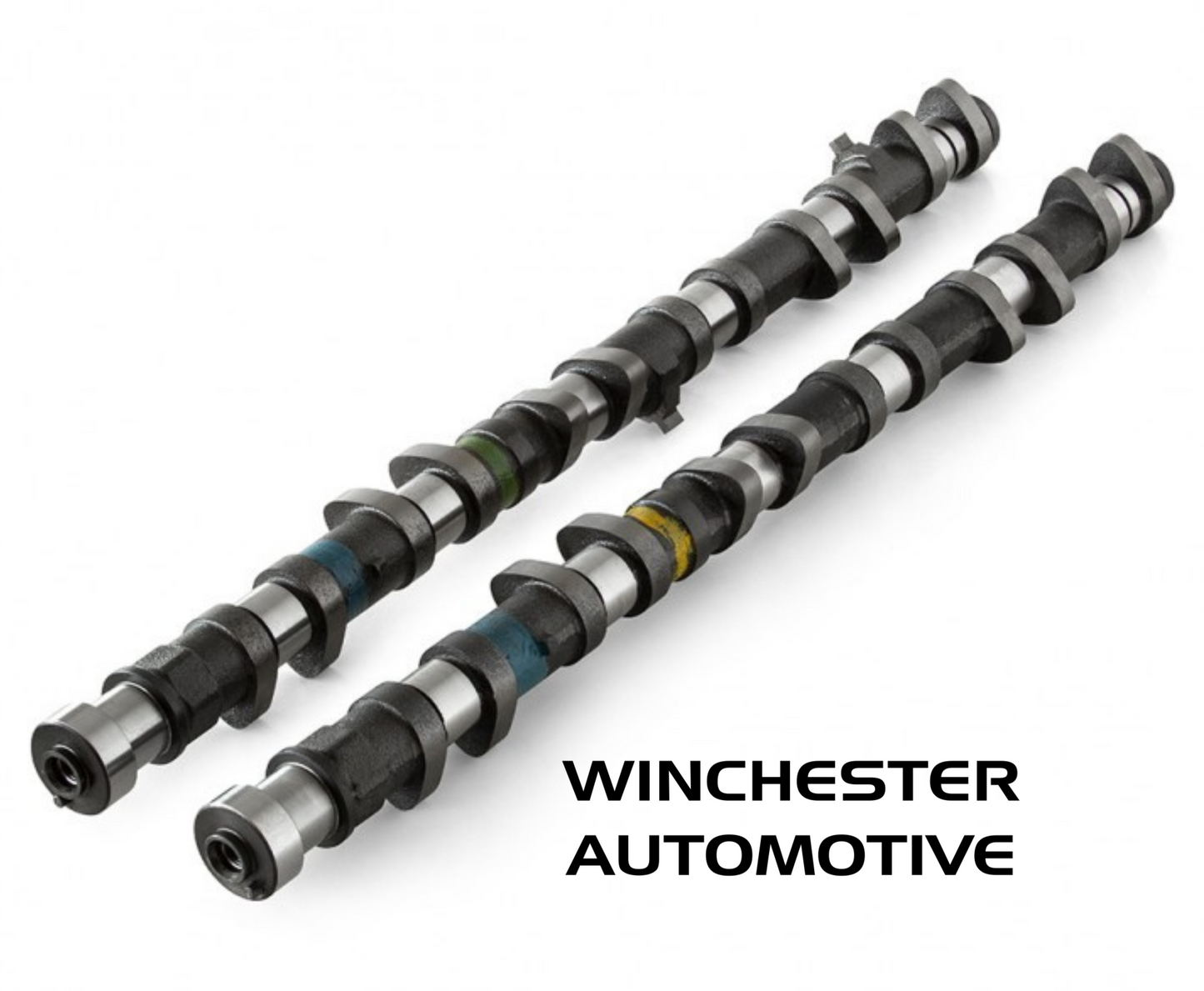

KELFORD 229-C 1JZ NON VVTI 264/272 CAMSHAFT SET
KELFORD 229-C 1JZ NON VVTI 264/272 CAMSHAFT SET
Regular price
$1,180.00 AUD
Regular price
Sale price
$1,180.00 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
264/272 Degree street, strip or track day cams for good response and midrange power. Suits up to 30 lb boost and 8000 RPM with our recommended valve spring. Requires valve spring upgrade, KVS109-1JZ
264/272 Degrees advertised duration. 9.65mm/9.65mm lift.
 |
|||||||
| Engine Make: | Engine Model: | Part Number: | |||||
| TOYOTA | 1JZ TURBO | 229-C | |||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.25mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 9.90mm | Exhaust: | 9.90mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 9.65mm | Exhaust: | 9.65mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 264 | Exhaust: | 272 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 228 | Exhaust: | 232 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 7 BTDC | EVO: | 52 BBDC | ||
| IVC: | 41 ABDC | EVC: | 0 TDC | ||||
| Suggested Centre Lines: | Intake: | 107 | Exhaust: | 116 | |||
| VALVE | Lift @ TDC | Intake: | 1.73mm | Exhaust: | 0.94 | ||
