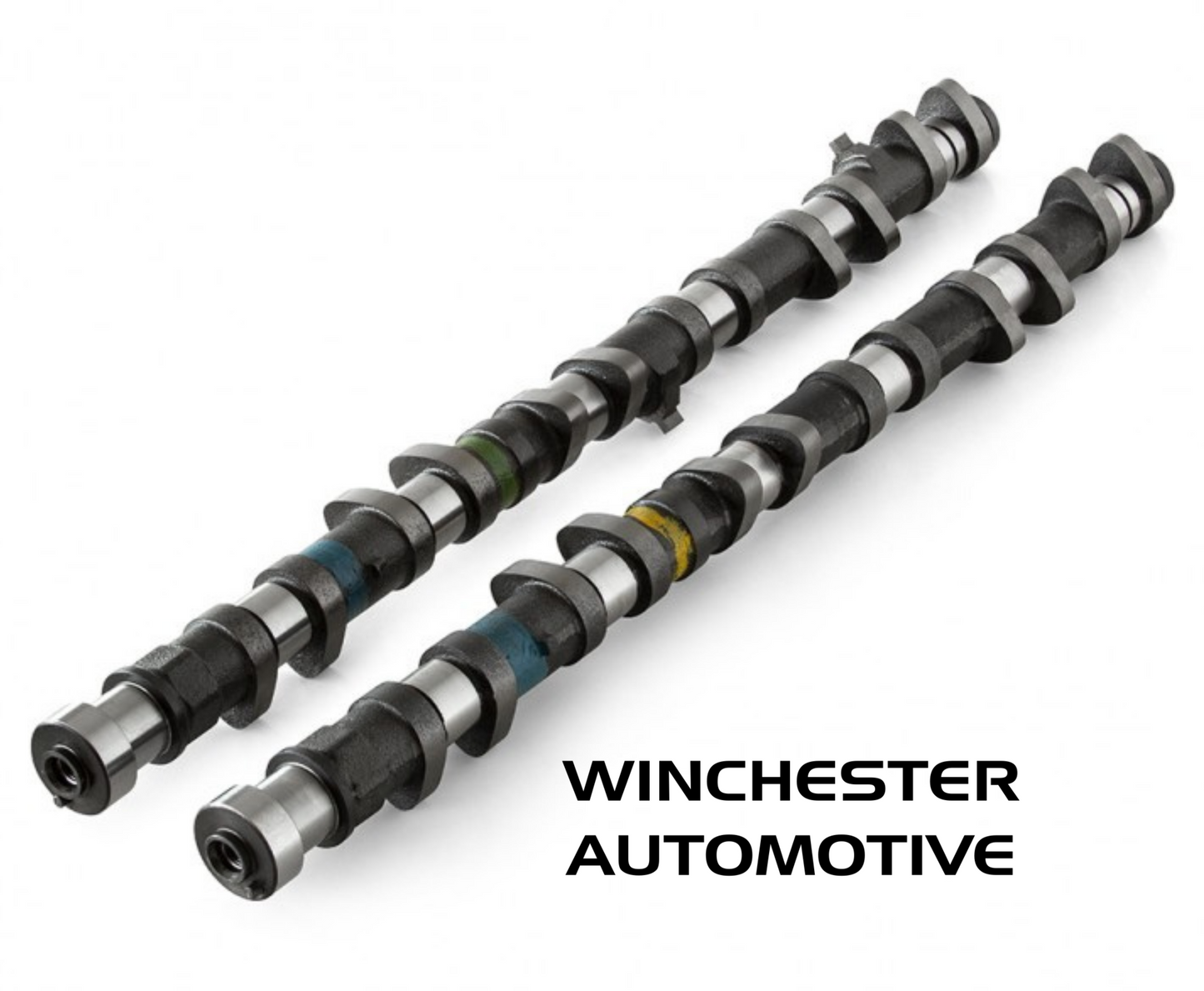

KELFORD 229-F 1JZ NON VVTI 286/286 CAMSHAFT SET

Kelford 229-F 1JZ-GTE 282/286 Degree racing cams to suit engines using an E85 blend. These cams require a shimless bucket or shim-under-bucket conversion. Cylinder head may need to be clearanced for cam swing. Requires valve spring upgrade, KVS109-1JZ

282/286 Degrees advertised duration. 11.00mm/11.00mm lift.

Engine Make:		Engine Model:				Part Number:
TOYOTA		1JZ TURBO				229-F
Valve Clearance:		Intake:	0.25mm	Set	COLD	at the	CAM
		Exhaust:	0.25mm	Set	COLD	at the	CAM
Cam Lift:		Intake:			11.25mm	Exhaust:	11.25mm
Rocker Ratio:		Intake:			1	Exhaust:	1
Nett Valve Lift:		Intake:			11.00mm	Exhaust:	11.00mm
Advertised Duration @	0.10mm	Intake:			282	Exhaust:	286
Duration @	1.00mm VALVE LIFT	Intake:			244	Exhaust:	248
Timing @	1.00mm VALVE LIFT	IVO:			10 BTDC	EVO:	64 BBDC
		IVC:			54 ABDC	EVC:	4 ATDC
Suggested Centre Lines:		Intake:			112	Exhaust:	120
VALVE	Lift @ TDC	Intake:			2.36mm	Exhaust:	1.40
