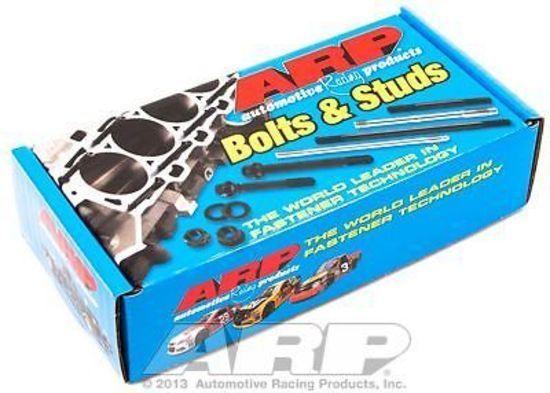

1JZ / 2JZ ARP HEAD STUDS 203-4205

ARP 2000 Head studs to suit all 1JZ-GE / 1JZ-GTE / 2JZ-GE / 2JZ-GTE Engines both vvti and non vvti.

Obtaining the optimum cylinder head-to-block sealing is especially critical in small displacement engines employing high compression pistons or power adders like turbochargers, nitrous oxide and superchargers. That’s why ARP head studs are popular among leading Sport Compact/Import racers.

You should know that ARP uses a premium grade 8740 alloy and proprietary ARP2000® materials that are rated far superior to
“aircraft’ quality alloys. Each stud is placed vertically in special racks and precisely heat-treated to 200,000 psi for the 8740 material or 220,000 psi for the ARP2000® material. Following heat-treat, each stud is centerless ground to make it as close to perfectly concentric as possible. This procedure involves about ten very slight cuts and results in an exceptionally straight part. It’s important to note that lesser quality studs are not even centerless ground – the material is thread rolled in bar stock form (mostly before heat-treat, when the material is easier to machine). Because ARP studs are manufactured to such exacting tolerances, you will note that gaskets and cylinder heads literally glide into position and are perfectly aligned – something that won’t happen with inferior quality head studs.

ARP studs are thread rolled after heat-treat, which gives them about 2000% (that’s twenty times) better fatigue strength than those
studs that are threaded prior to heat-treat.
