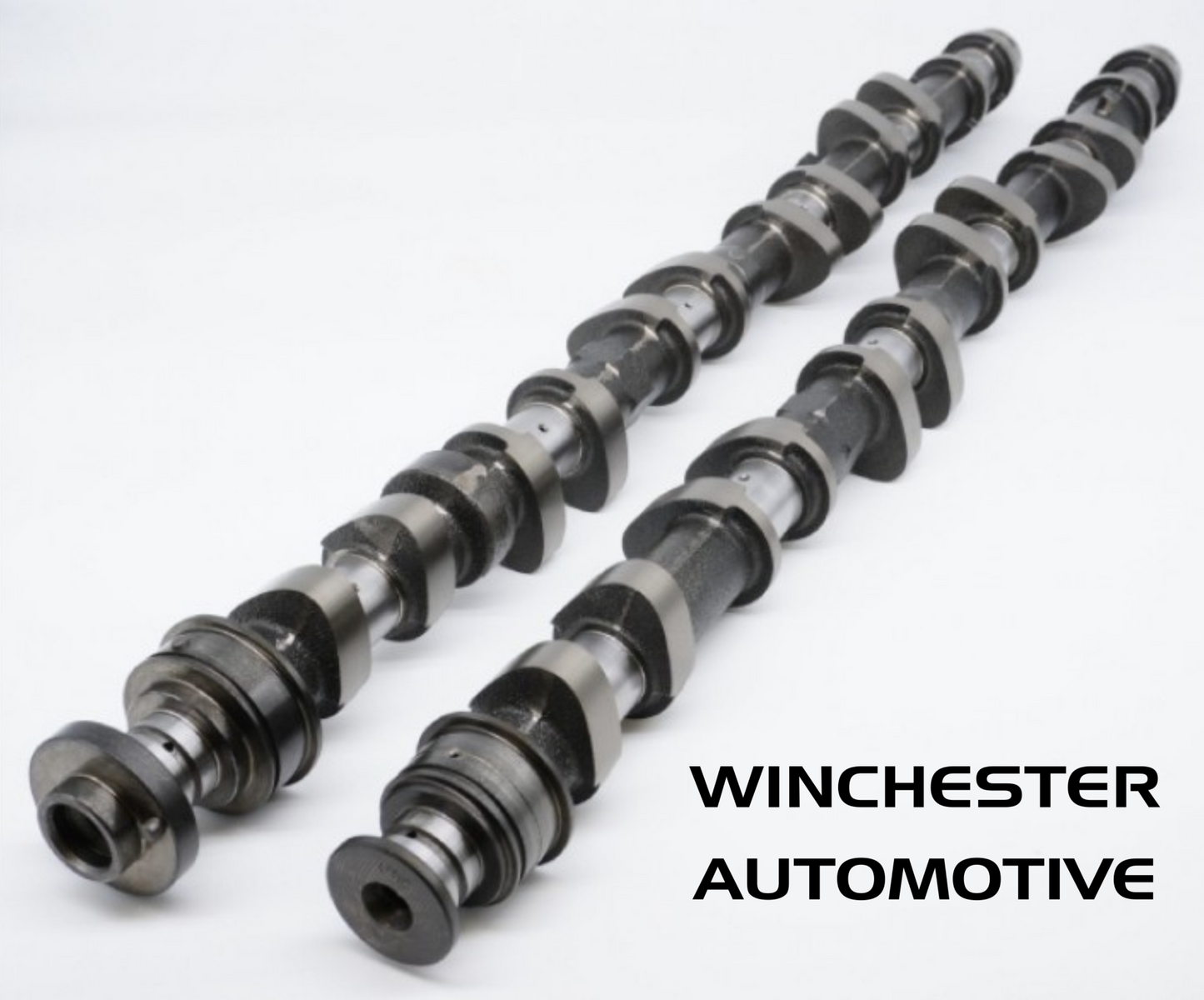

KELFORD 1FZ-FE 225-B 270/270 CAMSHAFT SET

KELFORD 1FZ-FE 225-B 270/270 CAMSHAFT SET

Regular price $1,500.00 AUD
Regular price Sale price $1,500.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Kelford 225-B 1FZ-FE "Stage 2" cams to suit mildly modified engines.
270/270 Degrees advertised duration. 9.65mm/9.65mm lift.

Engine Make: Engine Model: Part Number:
TOYOTA 1FZ-FE 225-B
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 9.90mm Exhaust: 9.95mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 9.65mm Exhaust: 9.65mm
Advertised Duration @ 0.10mm Intake: 270 Exhaust: 270
Duration @ 1.00mm VALVE LIFT Intake: 232 Exhaust: 232
Timing @ 1.00mm VALVE LIFT IVO: 9 BTDC EVO: 43 BBDC
    IVC: 43 ABDC EVC: 9 ATDC
Suggested Centre Lines:   Intake: 107 Exhaust: 107
VALVE Lift @ TDC Intake: 1.94mm Exhaust: 1.96
