KELFORD

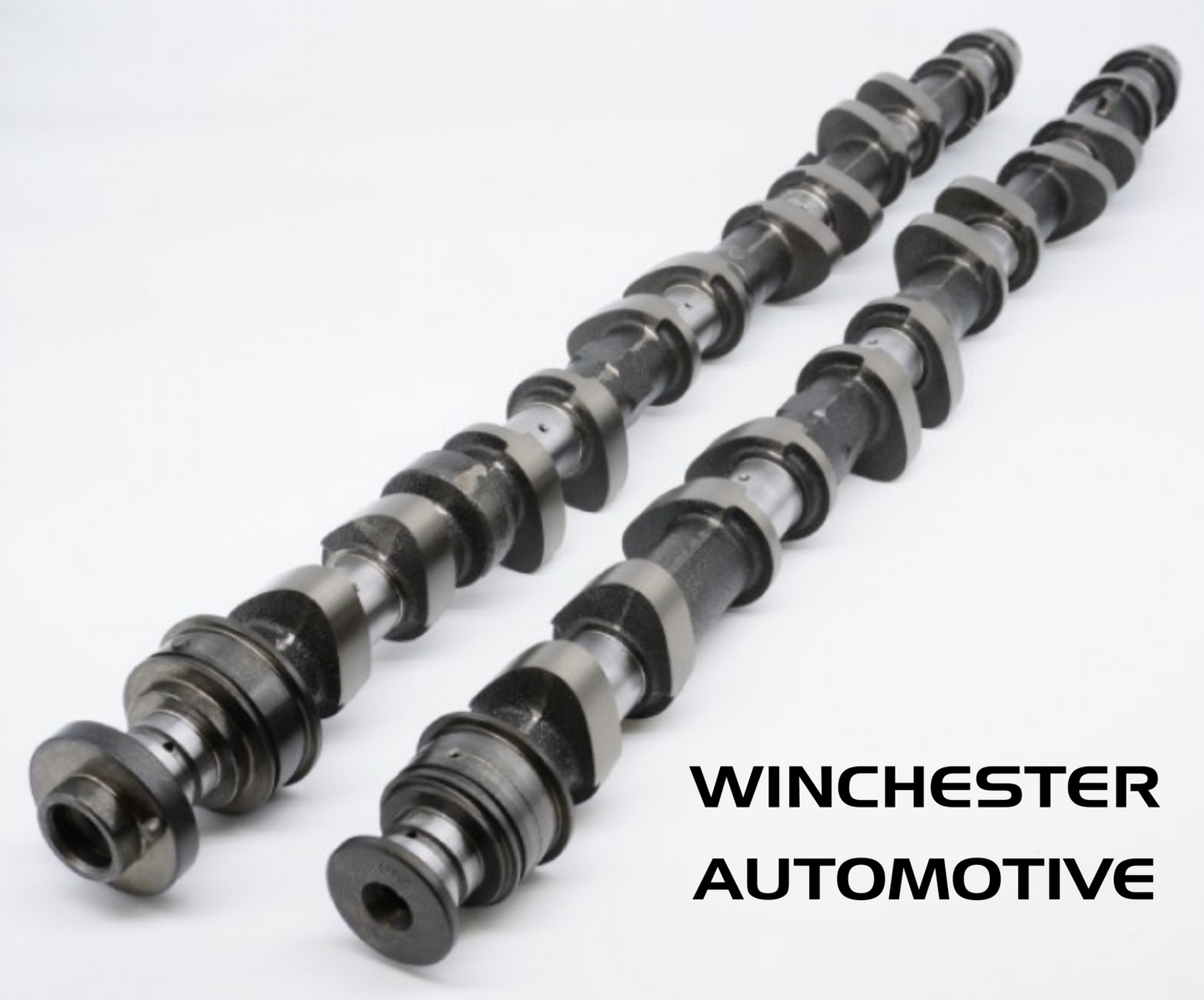

KELFORD 1FZ-FE 225-TI 276 / 284 CAMSHAFT SET

KELFORD 1FZ-FE 225-TI 276 / 284 CAMSHAFT SET

Regular price $1,500.00 AUD
Regular price Sale price $1,500.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Kelford 225-TI 1FZ-FE Turbo cams for high HP engine builds.
276/284 Degrees advertised duration. 10.35mm/10.55mm lift.
Engine Make: Engine Model: Part Number:
TOYOTA 1FZ-FE 225-T1
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 10.60mm Exhaust: 10.85mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.35mm Exhaust: 10.55mm
Advertised Duration @ 0.10mm Intake: 276 Exhaust: 284
Duration @ 1.00mm VALVE LIFT Intake: 238 Exhaust: 246
Timing @ 1.00mm VALVE LIFT IVO: 9 BTDC EVO: 58 BBDC
    IVC: 49 ABDC EVC: 8 ATDC
Suggested Centre Lines:   Intake: 110 Exhaust: 115
VALVE Lift @ TDC Intake: 1.91mm Exhaust: 1.77
