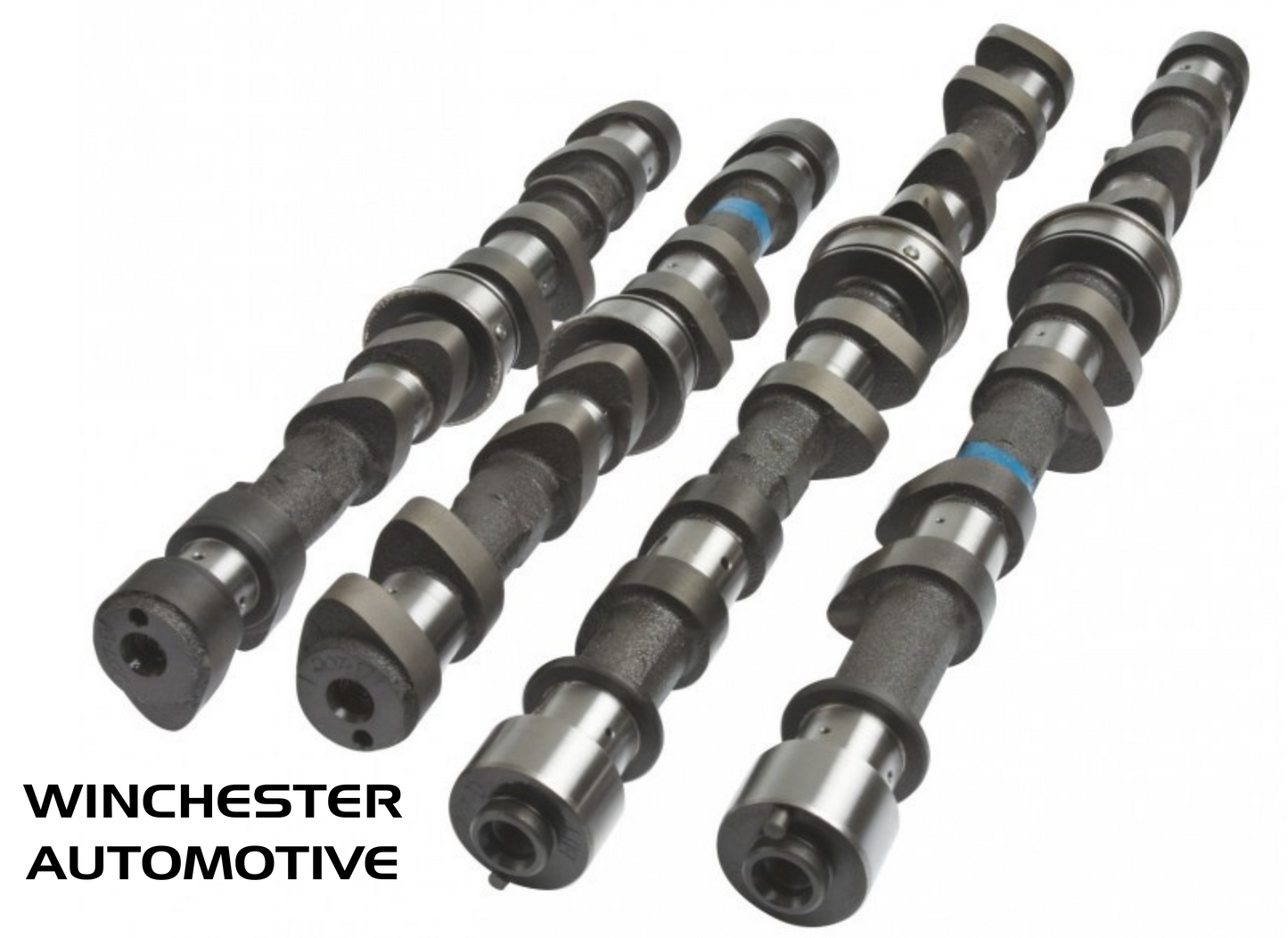

KELFORD 207-E 1UZ-FE NON VVTI 286/286 CAMSHAFTS

Kelford 207-E 1UZ-FE non vvti racing cams to suit engines with a good exhaust, raised compression, eight throttles etc.

286/286 Degrees advertised duration. 9.65mm/9.65mm lift

*Please note the OEM scissor gears from the original cams need to be swapped over to the kelfords*

Engine Make:		Engine Model:				Part Number:
TOYOTA		Lexus 1UZ-FE				207-E
Valve Clearance:		Intake:	0.25mm	Set	COLD	at the	CAM
		Exhaust:	0.30mm	Set	COLD	at the	CAM
Cam Lift:		Intake:			9.90mm	Exhaust:	9.95mm
Rocker Ratio:		Intake:			1	Exhaust:	1
Nett Valve Lift:		Intake:			9.65mm	Exhaust:	9.65mm
Advertised Duration @	0.10mm	Intake:			286	Exhaust:	286
Duration @	1.00mm VALVE LIFT	Intake:			246	Exhaust:	246
Timing @	1.00mm VALVE LIFT	IVO:			19 BTDC	EVO:	47 BBDC
		IVC:			47 ABDC	EVC:	19 ATDC
Suggested Centre Lines:		Intake:			104	Exhaust:	104
VALVE	Lift @ TDC	Intake:			3.00mm	Exhaust:	3.00
