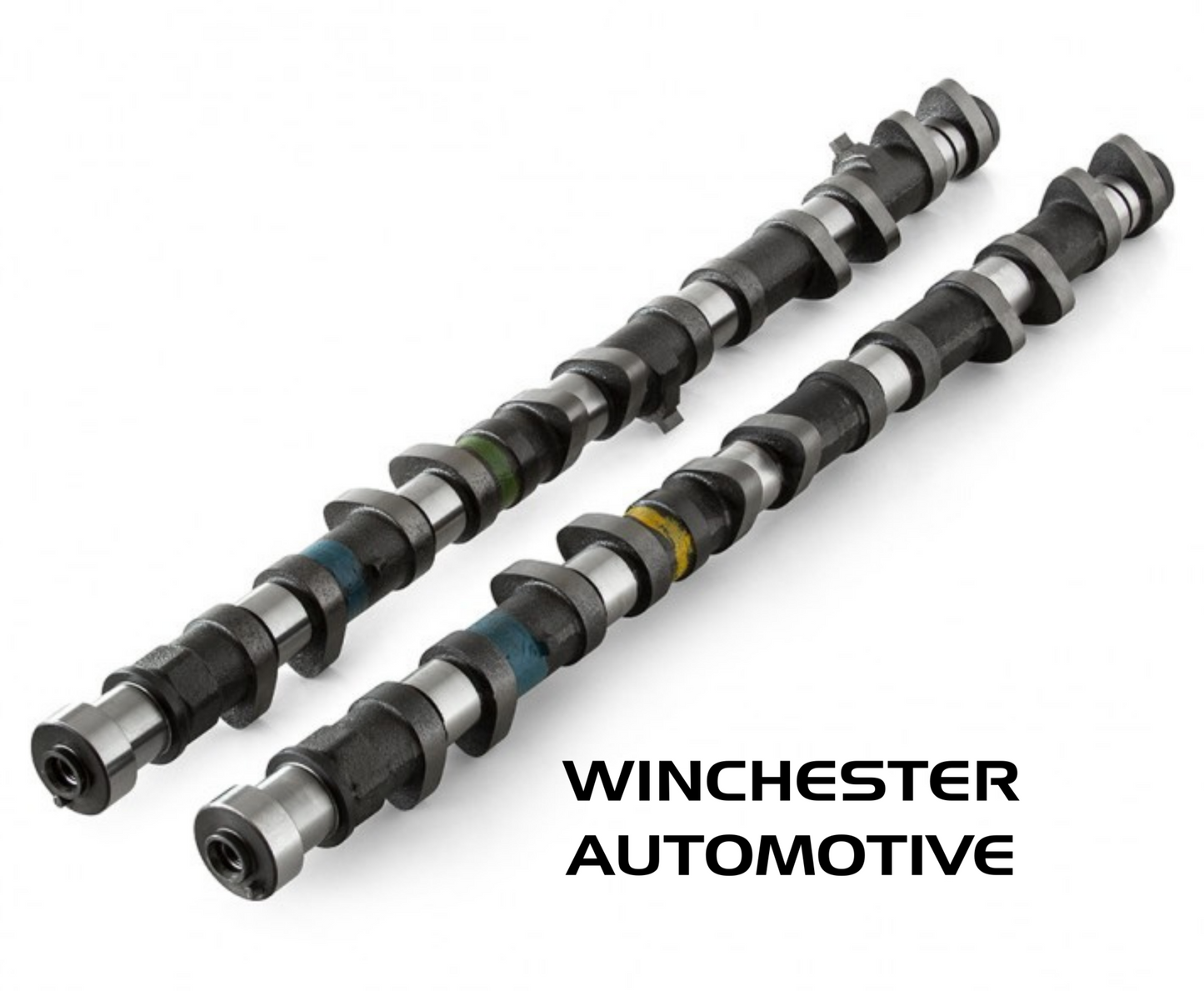

KELFORD 229-B 1JZ NON VVTI 260/260 CAMSHAFT SET
KELFORD 229-B 1JZ NON VVTI 260/260 CAMSHAFT SET
Regular price
$1,180.00 AUD
Regular price
Sale price
$1,180.00 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Street performance cams to suit turbo and ECU upgrade. Suits up to 30 lb boost and 7500 RPM with our recommended valve spring. Will suit stock valve spring with stock redline.
260/260 Degrees advertised duration. 9.35mm/9.35mm lift.
![]() |
|||||||
Engine Make: | Engine Model: | Part Number: | |||||
TOYOTA | 1JZ TURBO | 229-B | |||||
Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
Exhaust: | 0.25mm | Set | COLD | at the | CAM | ||
Cam Lift: | Intake: | 9.60mm | Exhaust: | 9.60mm | |||
Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
Nett Valve Lift: | Intake: | 9.35mm | Exhaust: | 9.35mm | |||
Advertised Duration @ | 0.10mm | Intake: | 260 | Exhaust: | 260 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 222 | Exhaust: | 222 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 3 BTDC | EVO: | 47 BBDC | ||
IVC: | 39 ABDC | EVC: | 5 BTDC | ||||
Suggested Centre Lines: | Intake: | 108 | Exhaust: | 116 | |||
VALVE | Lift @ TDC | Intake: | 1.31mm | Exhaust: | 0.26mm |
