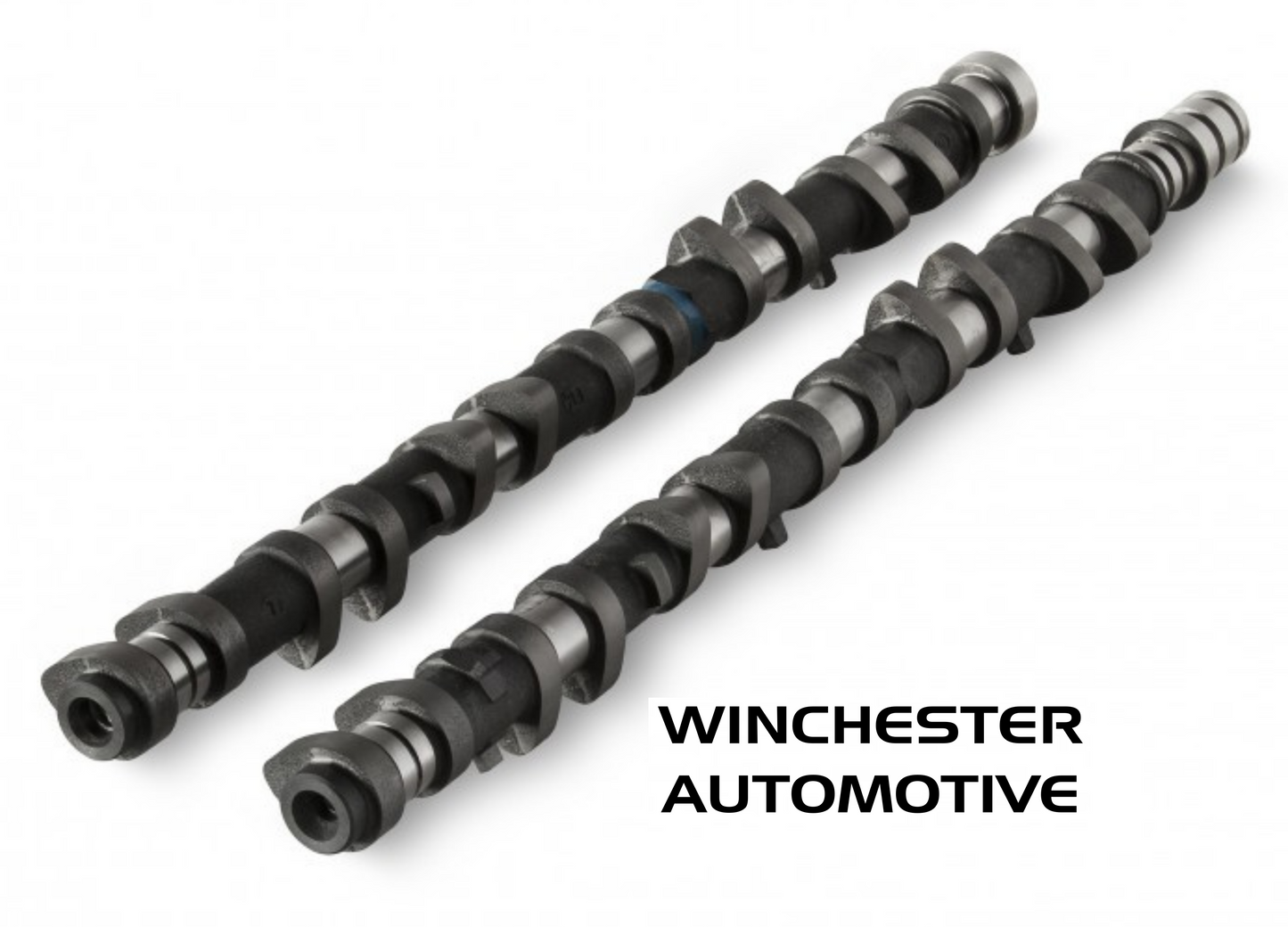

KELFORD 229-B 1JZ VVTI 260/260 CAMSHAFTS

Kelford 229-B 1JZ vvti Street performance cams to suit turbo and ECU upgrade. Suits up to 30 lb boost and 7500 RPM with our recommended valve spring. Will suit stock valve spring with stock redline.

260/260 Degrees advertised duration. 9.35mm/9.35mm lift.

Engine Make:		Engine Model:				Part Number:
TOYOTA		1JZ VVTi				V229-B
Valve Clearance:		Intake:	0.25mm	Set	COLD	at the	CAM
		Exhaust:	0.25mm	Set	COLD	at the	CAM
Cam Lift:		Intake:			9.60mm	Exhaust:	9.60mm
Rocker Ratio:		Intake:			1	Exhaust:	1
Nett Valve Lift:		Intake:			9.35mm	Exhaust:	9.35mm
Advertised Duration @	0.10mm	Intake:			260	Exhaust:	260
Duration @	1.00mm VALVE LIFT	Intake:			222	Exhaust:	222
Timing @	1.00mm VALVE LIFT	IVO:			4 ATDC	EVO:	50 BBDC
		IVC:			34 ABDC	EVC:	8 BTDC
Suggested Centre Lines:		Intake:			VARI	Exhaust:	116
VALVE	Lift @ TDC	Intake:			0.68mm	Exhaust:	0.26mm
