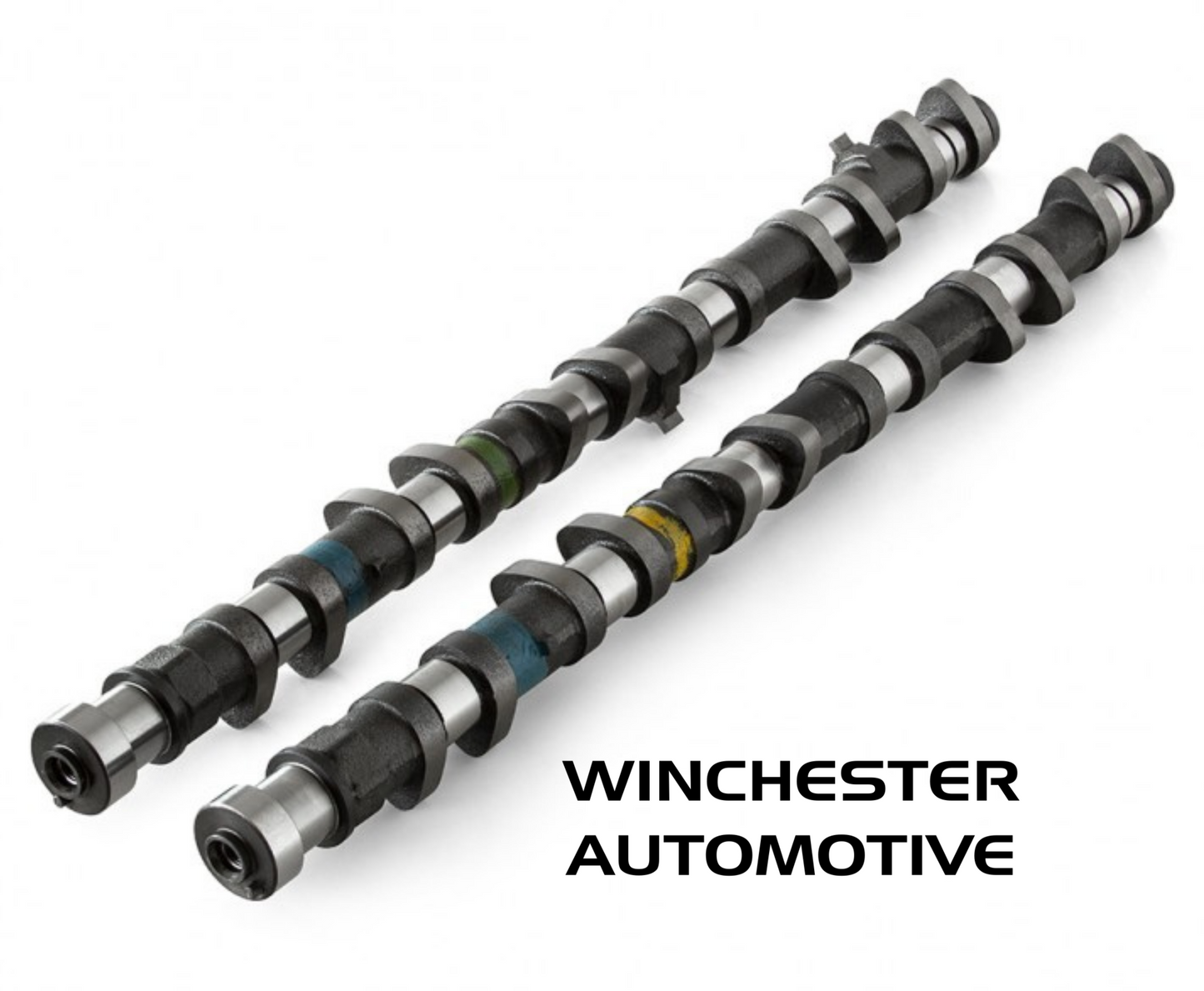

KELFORD 229-D 1JZ NON VVTI 272/278 CAMSHAFT SET
KELFORD 229-D 1JZ NON VVTI 272/278 CAMSHAFT SET
Regular price
$1,180.00 AUD
Regular price
Sale price
$1,180.00 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
272/278 Degree racing cams. These are our most popular cam specifications for a vast range of motorsport applications. Requires valve spring upgrade, KVS109-1JZ
View full details
272/278 Degrees advertised duration. 9.95mm/9.95mm lift.
 |
|||||||
| Engine Make: | Engine Model: | Part Number: | |||||
| TOYOTA | 1JZ TURBO | 229-D | |||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.25mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 10.20mm | Exhaust: | 10.20mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 9.95mm | Exhaust: | 9.95mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 272 | Exhaust: | 278 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 236 | Exhaust: | 240 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 8 BTDC | EVO: | 56 BBDC | ||
| IVC: | 48 ABDC | EVC: | 4 ATDC | ||||
| Suggested Centre Lines: | Intake: | 110 | Exhaust: | 116 | |||
| VALVE | Lift @ TDC | Intake: | 1.83mm | Exhaust: | 0.94 | ||
