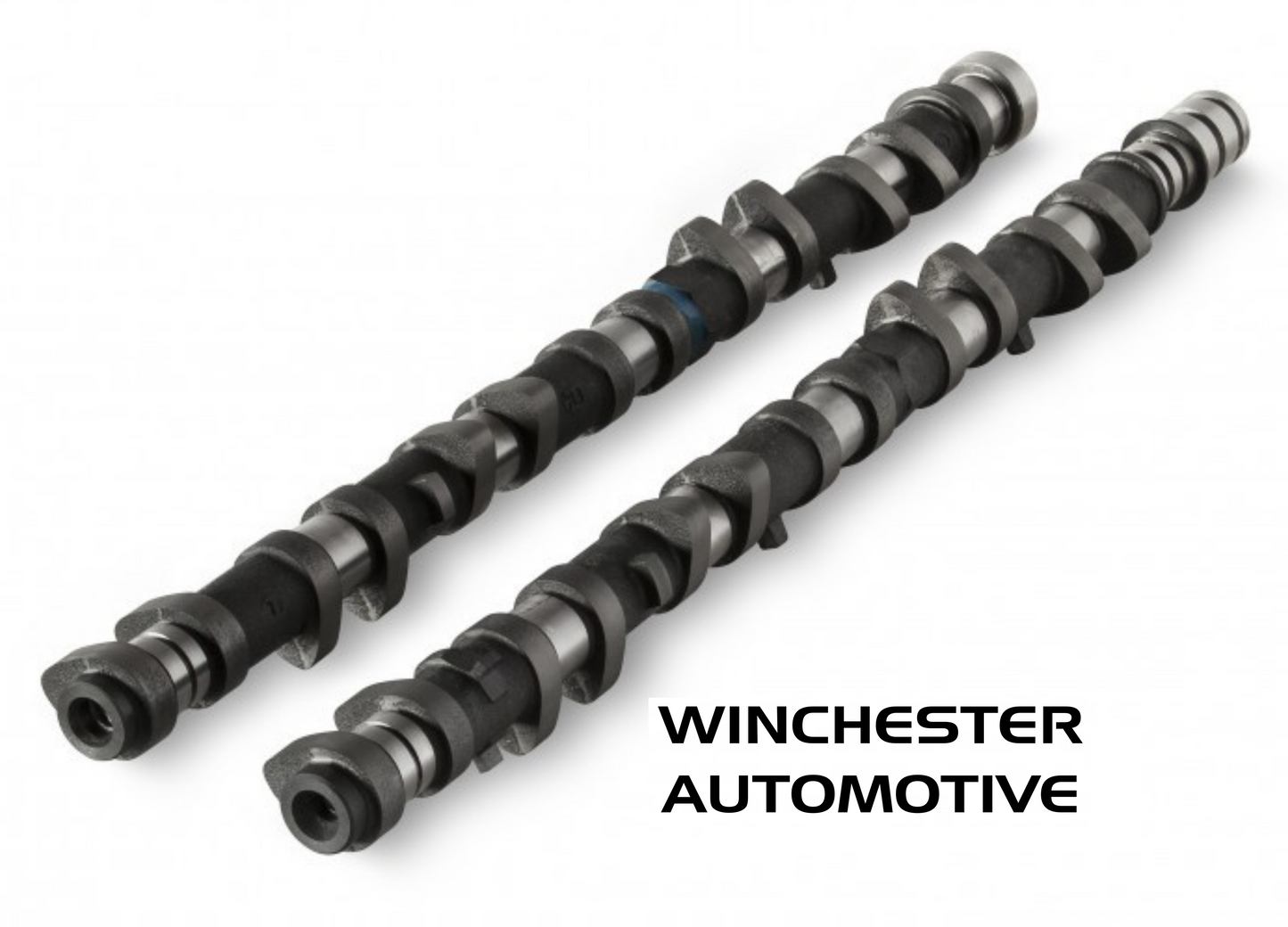

KELFORD V229-A 1JZ VVTI 248/248 CAMSHAFTS
KELFORD V229-A 1JZ VVTI 248/248 CAMSHAFTS
Regular price
$1,180.00 AUD
Regular price
Sale price
$1,180.00 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
High performance street cams for a near stock engine to suit up to 30 lb boost and 7000 RPM with our recommended valve spring. Will suit stock valve spring with stock redline.
248/248 Degrees advertised duration. 8.70mm/8.70mm lift.
 |
|||||||
| Engine Make: | Engine Model: | Part Number: | |||||
| TOYOTA | 1JZ VVTi | V229-A | |||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.25mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 8.95mm | Exhaust: | 8.95mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 8.70mm | Exhaust: | 8.70mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 248 | Exhaust: | 248 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 210 | Exhaust: | 210 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 4 ATDC | EVO: | 44 BBDC | ||
| IVC: | 34 ABDC | EVC: | 14 BTDC | ||||
| Suggested Centre Lines: | Intake: | Vari | Exhaust: | 116 | |||
| VALVE | Lift @ TDC | Intake: | 0.68mm | Exhaust: | 0.06mm | ||
