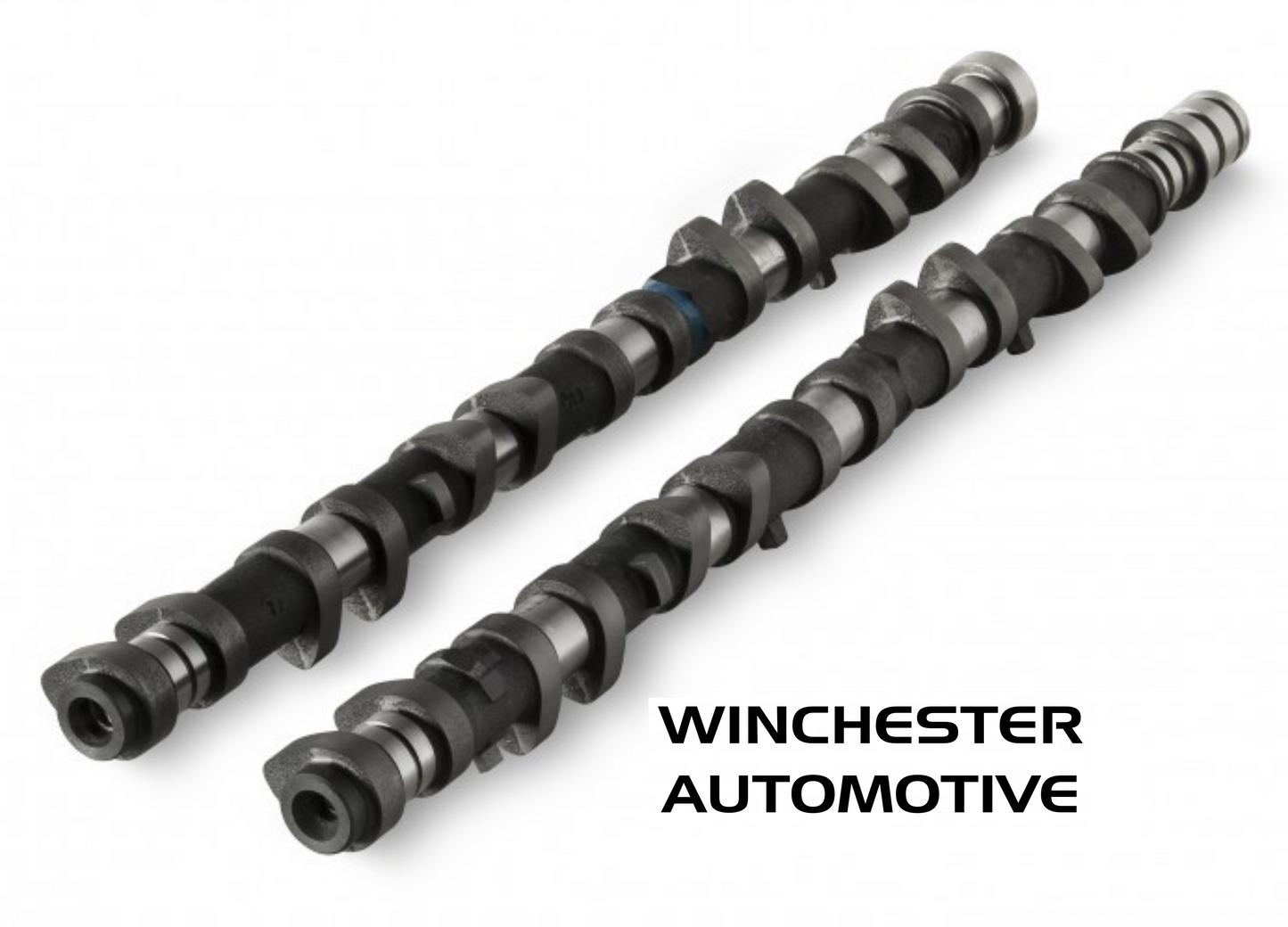

KELFORD V229-C 1JZ VVTI 264/272 CAMSHAFTS

Kelford V229-C 1JZ vvti 264/272 Degree street / strip or track day cams for good response and midrange power. Suits up to 30lb boost and 8000 RPM with our recommended valve spring. Requires valve spring upgrade, KVS109-1JZ.

264/272 Degrees advertised duration. 9.65mm/9.65mm lift.



Engine Make:		Engine Model:				Part Number:
TOYOTA		1JZ VVTi				V229-C
Valve Clearance:		Intake:	0.25mm	Set	COLD	at the	CAM
		Exhaust:	0.25mm	Set	COLD	at the	CAM
Cam Lift:		Intake:			9.90mm	Exhaust:	9.90mm
Rocker Ratio:		Intake:			1	Exhaust:	1
Nett Valve Lift:		Intake:			9.65mm	Exhaust:	9.65mm
Advertised Duration @	0.10mm	Intake:			264	Exhaust:	272
Duration @	1.00mm VALVE LIFT	Intake:			228	Exhaust:	232
Timing @	1.00mm VALVE LIFT	IVO:			4 ATDC	EVO:	52 BBDC
		IVC:			34 ABDC	EVC:	0 TDC
Suggested Centre Lines:		Intake:			VARI	Exhaust:	116
VALVE	Lift @ TDC	Intake:			0.68mm	Exhaust:	0.94
