KELFORD

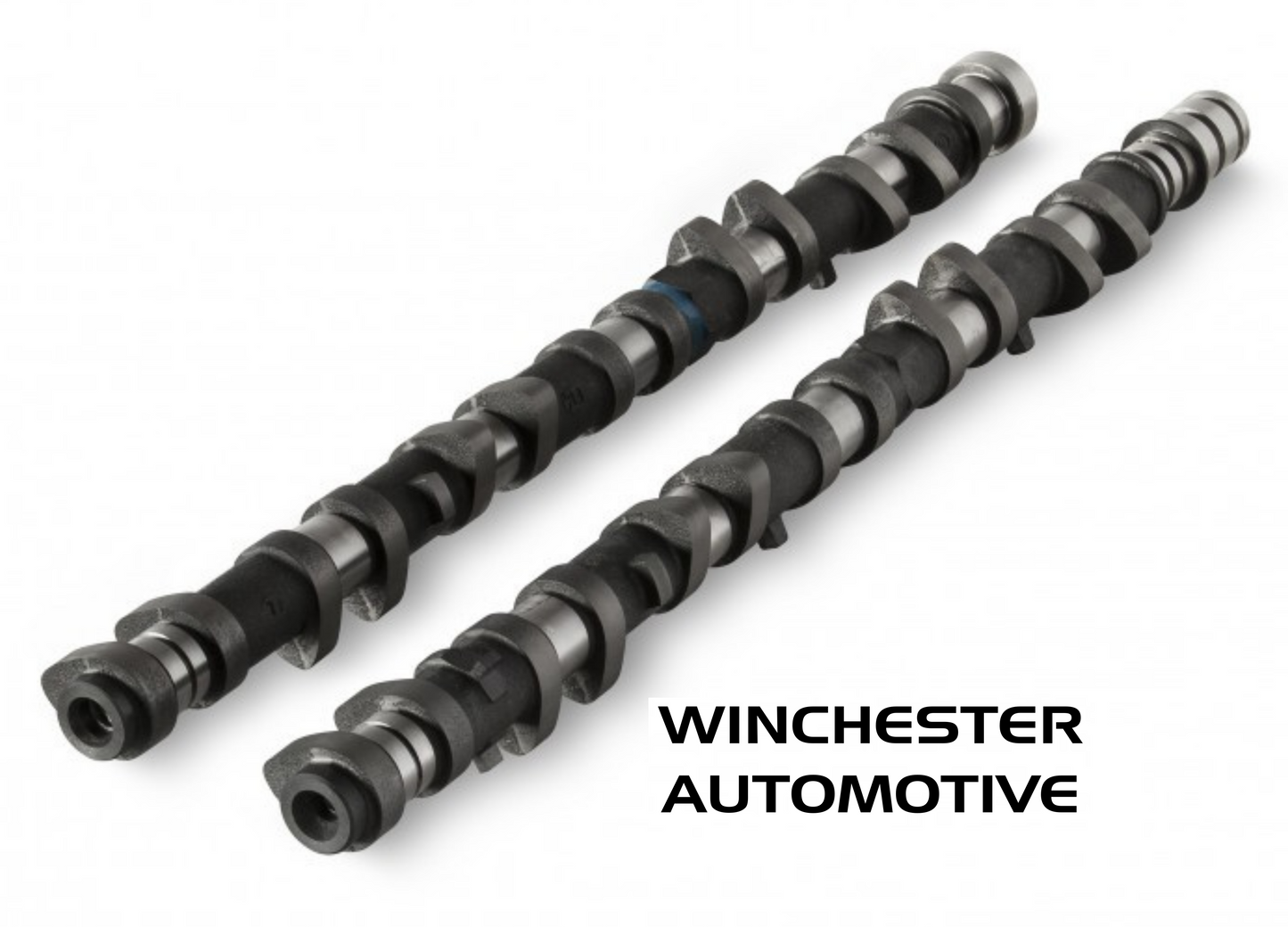

KELFORD V229-D 1JZ VVTI 272/278 CAMSHAFTS
KELFORD V229-D 1JZ VVTI 272/278 CAMSHAFTS
Regular price
$1,180.00 AUD
Regular price
Sale price
$1,180.00 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Kelford V229-D 1JZ vvti 272/278 Degree racing cams. These are our most popular cams for a vast range of motorsport applications. Requires valve spring upgrade, KVS109-1JZ.
272/278 Degrees advertised duration. 9.95mm/9.95mm lift.
 |
|||||||
| Engine Make: | Engine Model: | Part Number: | |||||
| TOYOTA | 1JZ VVTi | V229-D | |||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.25mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 10.20mm | Exhaust: | 10.20mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 9.95mm | Exhaust: | 9.95mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 272 | Exhaust: | 278 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 236 | Exhaust: | 240 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 4 ATDC | EVO: | 60 BBDC | ||
| IVC: | 34 ABDC | EVC: | 0 TDC | ||||
| Suggested Centre Lines: | Intake: | VARI | Exhaust: | 120 | |||
| VALVE | Lift @ TDC | Intake: | 0.68mm | Exhaust: | 0.94 | ||
