KELFORD

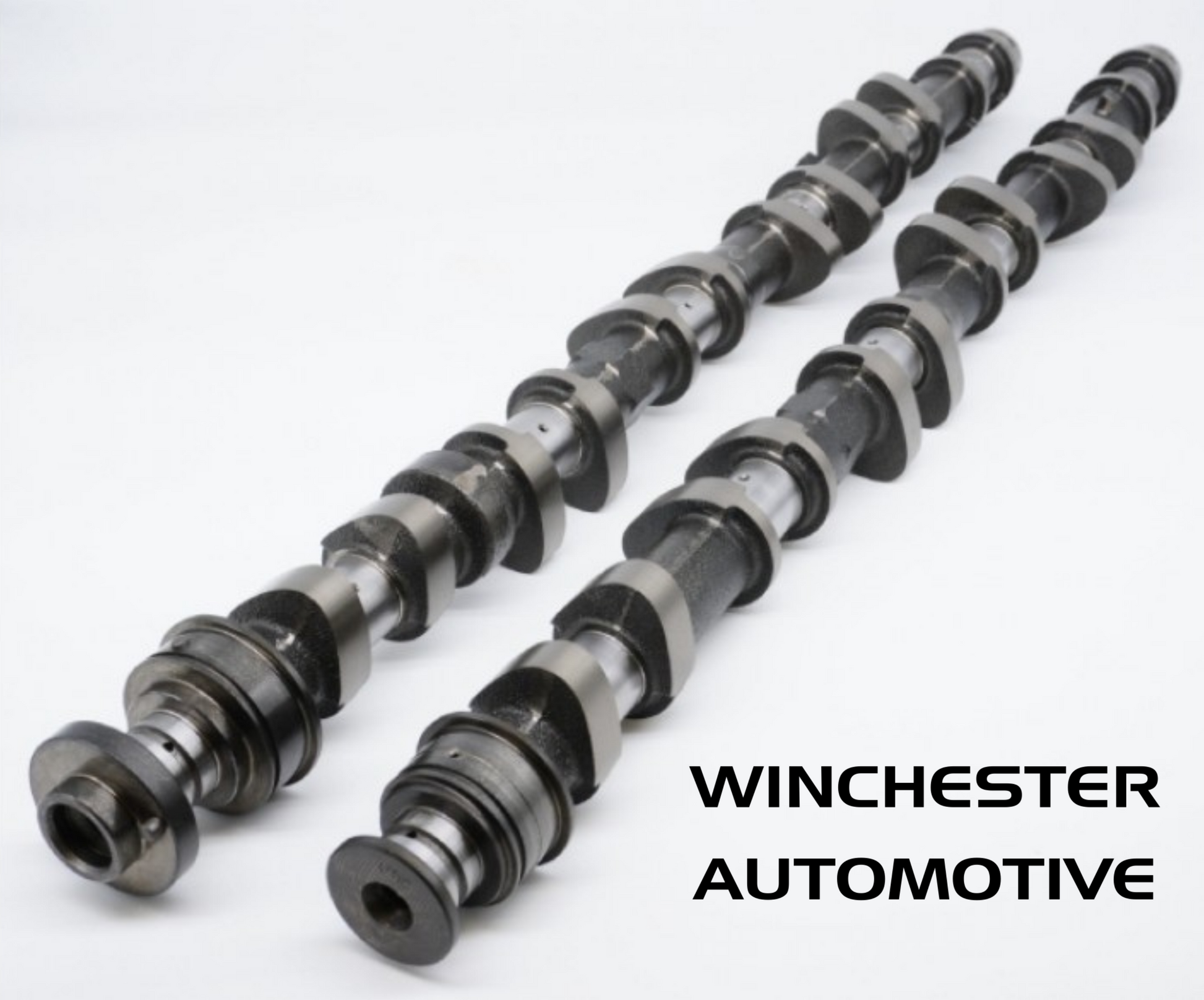

KELFORD 1FZ-FE 225-C 284/284 CAMSHAFT SET

KELFORD 1FZ-FE 225-C 284/284 CAMSHAFT SET

Regular price $1,500.00 AUD
Regular price Sale price $1,500.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
1FZ-FE Kelford 1FZ-FE "Stage 3" cams for well modified 1FZ engines.
284/284 Degrees advertised duration. 10.60mm/10.55mm lift.
Engine Make: Engine Model: Part Number:
TOYOTA 1FZ-FE 225-C
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 10.85mm Exhaust: 10.85mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.60mm Exhaust: 10.55mm
Advertised Duration @ 0.10mm Intake: 284 Exhaust: 284
Duration @ 1.00mm VALVE LIFT Intake: 246 Exhaust: 246
Timing @ 1.00mm VALVE LIFT IVO: 19 BTDC EVO: 50 BBDC
    IVC: 47 ABDC EVC: 16 ATDC
Suggested Centre Lines:   Intake: 104 Exhaust: 107
VALVE Lift @ TDC Intake: 3.09mm Exhaust: 2.68
